Aircraft Needle Stator Motor Flat Wire Cutting Machine 6KW 380V

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Flat Cutting Machine

Application Area:

Aircraft Motor Stator

Flat Cut Method:

Servo Control

Operation Mode:

Automation

Flat Cutting Accuracy:

±0.2mm

Flat Wire Cutting Angle:

Capable Of Arbitrary Angle Adjustment

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

6KW

Voltage:

380V

Warranty:

12 Months

Highlight:

High Light

Highlight:

6KW motor coil winding machine

380V motor coil winding machine

6KW stator needle winding machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

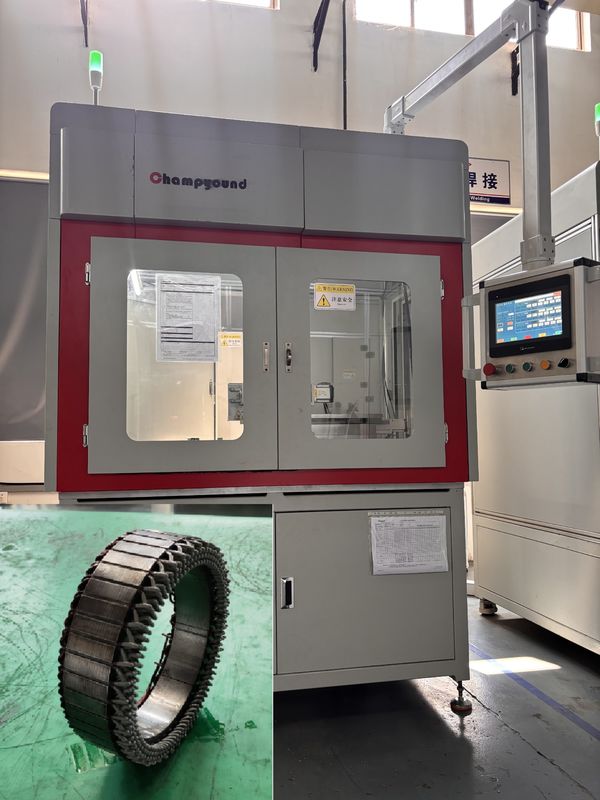

Aircraft Needle Stator Motor Flat Wire Cutting Machine 6KW 380V

High-Precision Servo-Controlled Flat Cutting Machine for Aircraft Motor Stator

This specialized flat cutting machine delivers exceptional precision for processing flat wire stators, producing clean, accurate sections that optimize motor performance. Featuring servo-controlled operation, it enables arbitrary angle cutting and maintains consistent diameter precision with every pass.

Technical Specifications

Feature	Specification
Application	Aircraft Motor Stator
Operation Mode	Automation
Cutting Method	Servo Control
Control System	PLC Program
Air Pressure	0.4-0.7Mpa
Power	6kW
Voltage	380V
Drive System	Servo Drive (Arbitrary Angle Cutting)
Cutting Module	Servo Cutting Module (Concentric Flat Cutting)
Stack Height Range	30-370mm
Diameter Range	135-440mm
Cutting Precision	±0.2mm

Stator Specifications

Product Outer Diameter	Layers of Flat Wire	Stator Stack Height
210mm	8 layers	Customizable

Key Advantages

Precision Engineering: Advanced cutting technology and control system ensure smooth wire surfaces and accurate dimensions (±0.2mm precision).
High Efficiency: Automated workflow processes large quantities rapidly, significantly boosting production output.
Consistent Quality: Eliminates manual operation variability, ensuring uniform cut quality for reliable motor performance.
User-Friendly Operation: Intuitive interface and intelligent controls reduce training requirements and operational complexity.
Safety Focused: Automated operation minimizes direct human contact with cutting components, enhancing workplace safety.

Production Line Integration

This machine is part of Champyound's comprehensive motor stator production line, which includes wire forming, press-in, widening, head twisting, flat cutting, and welding machines. Each unit operates independently or can be integrated with conveyor systems.

Manufacturing Expertise

Champyound provides complete OEM/ODM solutions with experienced engineering teams, advanced machinery, and strict quality controls. Based in Suzhou's industrial hub, we specialize in flat wire motor manufacturing equipment for diverse applications including home appliances, industrial motors, compressors, and generators.
