380V Motor Flat Wire Making Machine Flat Wire Stator Cutting Equipment

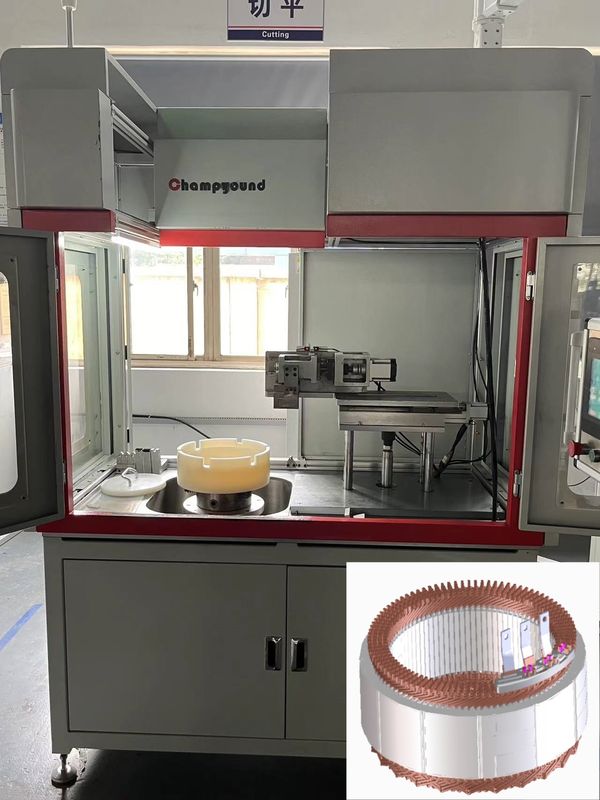

Flat Wire Stator Servo-Controlled Flat Cutting Machine for Light Truck Stator
Machine Description
The Servo-Controlled Flat Wire Stator Cutting Machine delivers high-precision cutting of flat wire stators, producing clean and accurate sections for optimal motor performance. Featuring a servo transmission system, it enables arbitrary angle cutting and same-diameter cutting with each pass for consistent precision.
This machine offers excellent adaptability with tooling changes for stack heights (30-370mm) and diameters (135-440mm), achieving ±0.2mm cutting precision. It accommodates cores with different slot numbers through parameter adjustments and includes tool life monitoring with automatic alerts after 200,000 cycles.
Technical Specifications
| Feature |
Specification |
| Application Area |
Light Truck Stator |
| Operation Mode |
Automation |
| Cutting Method |
Servo Control |
| Control System |
PLC Program |
| Air Pressure |
0.4-0.7Mpa |
| Power |
6kW |
| Voltage |
380V |
| Drive System |
Servo Drive (Arbitrary Angle Cutting) |
| Cutting Module |
Servo Cutting Module (Concentric Flat Cutting) |
| Stack Height Range |
30-370mm |
| Diameter Range |
135-440mm |
| Cutting Precision |
±0.2mm |
Stator Specifications
| Product Outer Diameter |
Layers of Flat Wire |
Stator Stack Height |
| 370mm |
8 layers |
121mm |
Key Advantages
1. High-precision flat cutting with smooth wire surfaces and accurate dimensions.
2. Automated workflow significantly increases production efficiency.
3. Eliminates manual operation inconsistencies for reliable motor performance.
4. User-friendly interface reduces training requirements and operating difficulty.
5. Automated operation enhances workplace safety by minimizing direct contact.
Production Line Overview
The Champyound motor stator production line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines, and welding machines. Each machine operates independently or can be integrated with a conveyor belt system.
OEM/ODM Services
Champyound provides expert flat wire motor manufacturing solutions through our experienced engineering team, advanced machinery, and strict process controls.
Research & Development
We offer comprehensive technical consultancy and turnkey project services for flat wire motor manufacturing, including motor costing, manufacturing technology, staff training, and complete project implementation.
Company Profile
Based in Suzhou's industrial hub, Champyound specializes in R&D, manufacturing, and sales of flat wire motor machines for applications including home appliances, industrial motors, compressors, AC motors, servo motors, and generators.
