Needle Flat Cutting Electric Motor Field Flat Wire Winding Machine Automatic

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Flat Cutting Machine

Operation Mode:

Automation

Application Area:

Light Mining Truck Stator

Flat Cut Method:

Servo Control

Flat Cutting Accuracy:

±0.2mm

Flat Wire Cutting Angle:

Capable Of Arbitrary Angle Adjustment

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

6KW

Voltage:

380V

Specification:

Customized

Warranty:

12 Months

Highlight:

High Light

Highlight:

needle field coil winding machine

Automatic field coil winding machine

needle automatic electric motor winding machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

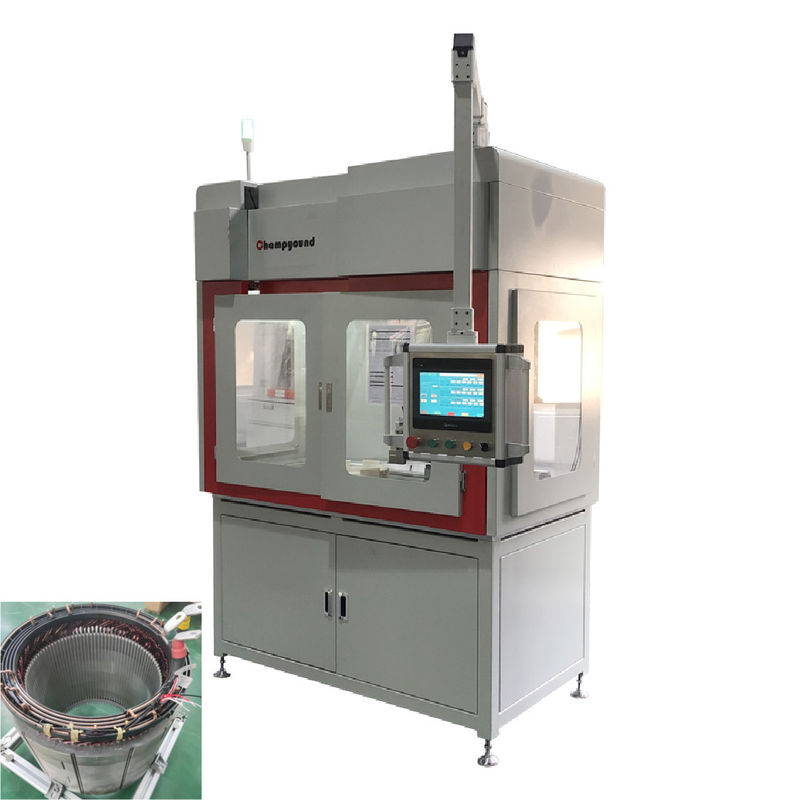

Flat Wire Stator Servo-Controlled Flat Cutting Machine for Light Mining Truck Stator

The Servo-Controlled Flat Cutting Machine delivers high-precision cutting of flat wire stators, producing clean and accurate sections for optimal motor performance. Featuring servo transmission technology, it enables arbitrary angle cutting and consistent same-diameter cutting with each operation.

Key Features

Adaptable for stack heights of 30-370mm and diameters of 135-440mm
±0.2mm cutting precision for superior quality
Compatible with cores of varying slot numbers through parameter adjustments
Tool life monitoring with automatic alerts after 200,000 cycles
Servo-driven cutting module for concentric flat cutting

Technical Specifications

Machine Name	Servo-Controlled Flat Cutting Machine
Application	Light Mining Truck Stator
Operation	Fully Automated
Control System	PLC Program
Power Requirements	6kW, 380V
Cutting Precision	±0.2mm
Working Range	Stack Height: 30-370mm \| Diameter: 135-440mm

Stator Specifications

Outer Diameter	Flat Wire Layers	Stack Height
370mm	8 layers	226mm

Operational Advantages

High-precision cutting ensures smooth surfaces and dimensional accuracy
Automated workflow significantly increases production efficiency
Consistent output quality enhances motor performance reliability
User-friendly interface reduces training requirements
Automated safety features minimize workplace hazards

Production Line Integration

The Champyound motor stator production line includes wire forming, press-in, widening, head twisting, flat cutting, and welding machines. Each unit operates independently or can be integrated via conveyor belt systems.

Manufacturing Expertise

Champyound provides comprehensive OEM/ODM services with experienced engineering teams, advanced machinery, and strict quality controls. Our Suzhou-based facility specializes in flat wire motor manufacturing equipment for diverse applications including industrial motors, servo motors, and generators.

Technical Services

We offer complete technical consultancy and turnkey solutions including motor costing, manufacturing technology development, and staff training programs.
