4 Layer Stator Automatic Motor Flat Wire Cutting Machine PLC Programmed

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Flat Cutting Machine

Application Arera:

Two-Wheeler Stator

Flat Cut Method:

Servo Control

Operation Mode:

Automation

Flat Cutting Accuracy:

±0.2mm

Flat Wire Cutting Angle:

Capable Of Arbitrary Angle Adjustment

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

6KW

Voltage:

380V

Warranty:

12 Months

Highlight:

High Light

Highlight:

4 Layer Stator automatic motor coil winding machine

PLC Programmed automatic motor coil winding machine

PLC Programmed motor winding automatic machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

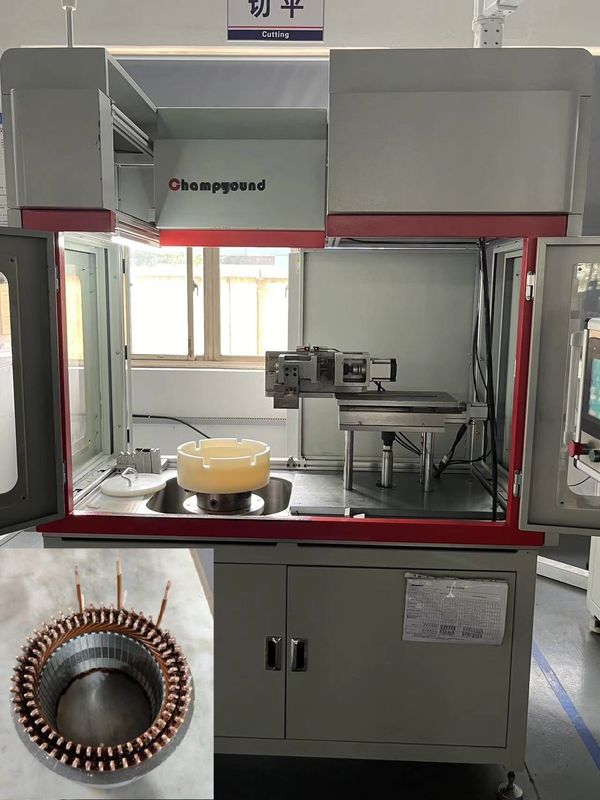

4 Layer Stator Automatic Motor Flat Wire Cutting Machine PLC Programmed

Flat Wire Stator Servo-Controlled Flat Cutting Machine for Two-Wheeler Stator

The Servo-Controlled Flat Cutting Machine delivers high-precision cutting of flat wire stators, producing clean and accurate sections for optimal motor performance. Featuring servo transmission technology, it enables arbitrary angle cutting and consistent same-diameter cutting with each operation.

Key Features

Adaptable design with tooling change capability for stack heights (30-370mm) and diameters (135-440mm)
±0.2mm cutting precision for consistent quality
Compatible with cores of varying slot numbers through parameter adjustments
Tool life monitoring with automatic alarm after 200,000 cycles

Technical Specifications

Feature	Specification
Application Area	Two-Wheeler Stator
Operation Mode	Automation
Cutting Method	Servo Control
Control System	PLC Program
Air Pressure	0.4-0.7Mpa
Power	6kW
Voltage	380V
Drive System	Servo Drive \| Arbitrary Angle Cutting
Cutting Module	Servo Cutting Module \| Concentric Flat Cutting
Stack Height Range	30-370 MM
Diameter Range	135-440 MM
Cutting Precision	±0.2 MM

Stator Specifications

Product Outer Diameter	Layers of Flat Wire	Stator Stack Height
140mm	4 layers	65mm

Operational Advantages

Advanced cutting technology ensures smooth wire surfaces and precise dimensions
Automated workflow significantly increases production efficiency
Eliminates manual operation inconsistencies for reliable motor performance
User-friendly interface reduces training requirements and operating difficulty
Automated safety features minimize workplace accident risks

Production Line Integration

The Champyound motor stator production line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines, and welding machines. Each machine operates independently or can be integrated with conveyor belt systems.

Manufacturing Expertise

Champyound provides comprehensive OEM/ODM services with experienced engineering teams, advanced machinery, and strict process controls. We deliver optimal solutions for flat wire motor manufacturing, supported by an extensive service network.

Technical Services

Our R&D team offers technical consultancy and turnkey project services for flat wire motor manufacturing, including motor costing, manufacturing technology, staff training, and complete production solutions.

Company Profile

Based in Suzhou, China's Yangtze River Delta industrial hub, Champyound specializes in R&D, manufacturing, and sales of flat wire motor machines. Our equipment serves diverse applications including home appliances, industrial motors, compressors, AC motors, servo motors, and generators.
