Servo Controlled Flat Cutting Stator Winding Machine Assembly Line

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Flat Cutting Machine

Operation Mode:

Automation

Flat Cut Method:

Servo Control

Control System:

PLC Program

Flat Cutting Accuracy:

±0.2mm

Flat Wire Cutting Angle:

Capable Of Arbitrary Angle Adjustment

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

6KW

Voltage:

380V

Warranty:

12 Months

Highlight:

High Light

Highlight:

Servo Controlled stator coil winding machine

Flat Cutting stator coil winding machine

Flat Cutting stator assembly line

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

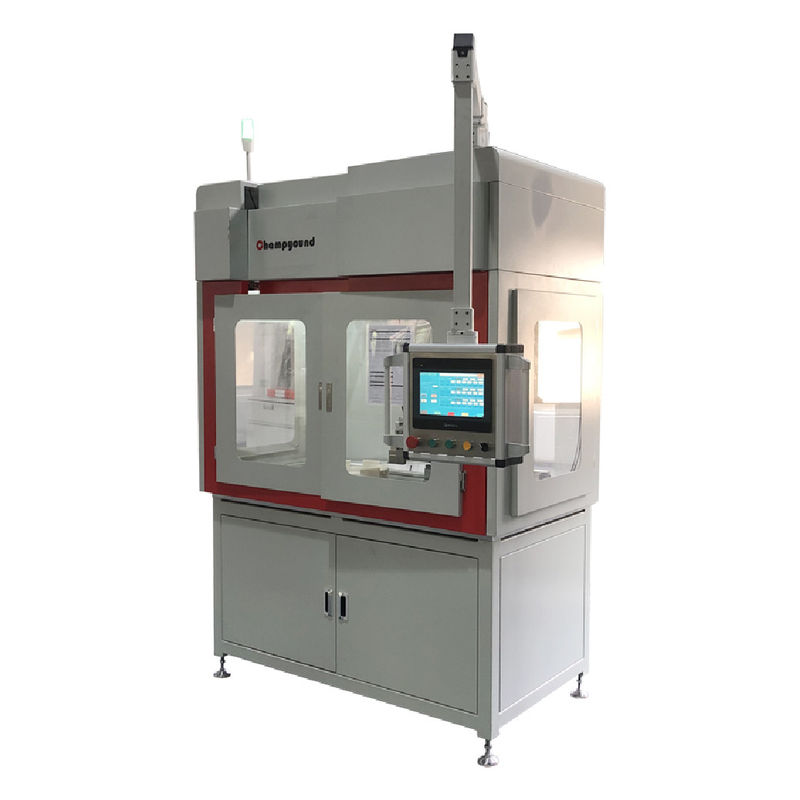

Servo Controlled Flat Cutting Stator Winding Machine Assembly Line

Flat Wire Stator Servo-Controlled Flat Cutting Machine for Efficient Motor Coil Assembly

The Servo-Controlled Flat Cutting Machine delivers high-precision cutting of flat wire stators, producing clean and accurate sections for optimal motor performance. Featuring a servo transmission system, it enables arbitrary angle cutting and consistent same-diameter cutting with each operation.

Key Features

This machine offers excellent adaptability with tooling adjustments for stack heights (30-370mm) and diameters (135-440mm). It maintains cutting precision of ±0.2mm and is compatible with cores of varying slot numbers through simple parameter changes. The system includes tool life monitoring with automatic alerts after 200,000 cycles.

Technical Specifications

Feature	Specification
Operation Mode	Automation
Cutting Method	Servo Control
Control System	PLC Program
Air Pressure	0.4-0.7Mpa
Power	6kW
Voltage	380V
Drive System	Servo Drive (Arbitrary Angle Cutting)
Cutting Module	Servo Cutting Module (Concentric Flat Cutting)
Stack Height Range	30-370 MM
Diameter Range	135-440 MM
Cutting Precision	±0.2 MM

Operational Advantages

Delivers high-precision flat cutting with smooth wire surfaces and accurate dimensions
Automated workflow significantly increases production speed and efficiency
Ensures consistent cut quality, improving motor performance stability
User-friendly interface reduces operator training requirements
Automated operation enhances workplace safety by minimizing direct contact

Production Line Integration

The Champyound motor stator production line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines, and welding machines. Each machine operates independently or can be connected via conveyor belt for integrated production.

Manufacturing Capabilities

Champyound provides comprehensive OEM/ODM services with experienced engineering teams, advanced machinery, and strict process controls. We deliver optimal solutions for flat wire motor manufacturing with extensive technical support.

Research & Development Services

Our R&D team offers technical consultancy and turnkey project services for flat wire motor manufacturing, including motor costing, manufacturing technology, staff training, and complete production solutions.
