ODM Outboard Stator Electric Motor Flat Wire Cutting Machine Needle Winder

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Flat Cutting Machine

Operation Mode:

Automation

Application Area:

Electric Motorcycle, Outboard Stator

Flat Cut Method:

Servo Control

Flat Cutting Accuracy:

±0.2mm

Flat Wire Cutting Angle:

Capable Of Arbitrary Angle Adjustment

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

6KW

Voltage:

380V

Warranty:

12 Months

Highlight:

High Light

Highlight:

ODM electric motor coil winding machine

Needle electric motor coil winding machine

ODM needle winder

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

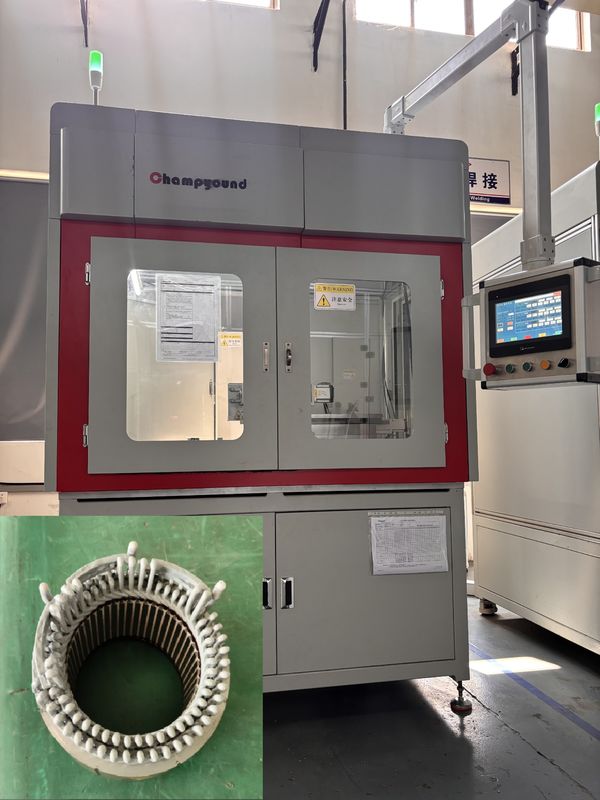

ODM Outboard Stator Electric Motor Flat Wire Cutting Machine Needle Winder

Flat Wire Stator Servo-Controlled Flat Cutting Machine for Motorcycle, Outboard Stator

The Servo-Controlled Flat Cutting Machine delivers high-precision cutting of flat wire stators, producing clean and accurate sections for optimal motor performance. Featuring a servo transmission system, it enables arbitrary angle cutting and same-diameter cutting with each pass, guaranteeing consistent precision.

Key Features

Adaptable to various stator sizes with stack height range of 30-370mm and diameter range of 135-440mm
±0.2mm cutting precision for superior motor performance
Compatible with cores of different slot numbers through simple parameter adjustment
Tool life monitoring with automatic alarm after 200,000 cycles

Technical Specifications

Feature	Specification
Application Area	Motorcycle, Outboard Stator
Operation Mode	Automation
Cutting Method	Servo Control
Control System	PLC Program
Air Pressure	0.4-0.7Mpa
Power	6kW
Voltage	380V
Drive System	Servo Drive (Arbitrary Angle Cutting)
Cutting Module	Servo Cutting Module (Concentric Flat Cutting)
Stack Height Range	30-370 MM
Diameter Range	135-440 MM
Cutting Precision	±0.2 MM

Stator Specifications

Product Outer Diameter	Layers of Flat Wire	Stator Stack Height
128mm	4 layers	50mm/75mm

Operational Advantages

High-precision flat cutting ensures smooth wire surfaces and accurate dimensions
Automated workflow significantly increases production efficiency
Eliminates manual operation inconsistencies for reliable motor performance
User-friendly interface reduces training requirements and operating difficulty
Automated operation enhances workplace safety

Production Line Overview

The Champyound motor stator production line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines, and welding machines. Each machine operates independently or can be integrated via conveyor belt.

Manufacturing Capabilities

Champyound provides comprehensive OEM/ODM services with experienced engineering teams, advanced machinery, and strict process controls to deliver optimal flat wire motor manufacturing solutions.

Research & Development

Our technical consultancy and turnkey project services cover motor costing, manufacturing technology, staff training, and complete production solutions.

Company Profile

Located in Suzhou's industrial hub, Champyound specializes in R&D, manufacturing, and sales of flat wire motor machines for applications including home appliances, industrial motors, compressors, AC motors, servo motors, and generators.
