Stator Cutting Machine
>
Precision Servo Winding Machine for Alternator Stators with Flat Wire Cutting Technology

Precision Servo Winding Machine for Alternator Stators with Flat Wire Cutting Technology

Product Details:
Place of Origin: China
Brand Name: Champypund
Certification: ISO9001:2015
Detail Information
Place of Origin:
China
Brand Name:
Champypund
Certification:
ISO9001:2015
Name:
Flat Cutting Machine
Operation Mode:
Automation
Flat Wire Cutting Angle:
Capable Of Arbitrary Angle Adjustment
Flat Cut Method:
Servo Control
Control System:
PLC Program
Flat Cutting Accuracy:
±0.2mm
Customization:
Allowed
Air Pressure:
(0.4-0.7)Mpa
Power:
6KW
Voltage:
380V
Warranty:
12 Months
Highlight:

High Light

Highlight:

Arbitrary Angle stator rewinding machine

,

Flat Cutting stator rewinding machine

,

High Precision alternator stator winding machine

Trading Information
Minimum Order Quantity:
1 SET
Price:
NEGOTIABLE
Packaging Details:
PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT
Delivery Time:
4-6 WEEKS
Payment Terms:
L/C, T/T
Supply Ability:
1 SET PER 4-6 WEEKS
Product Description

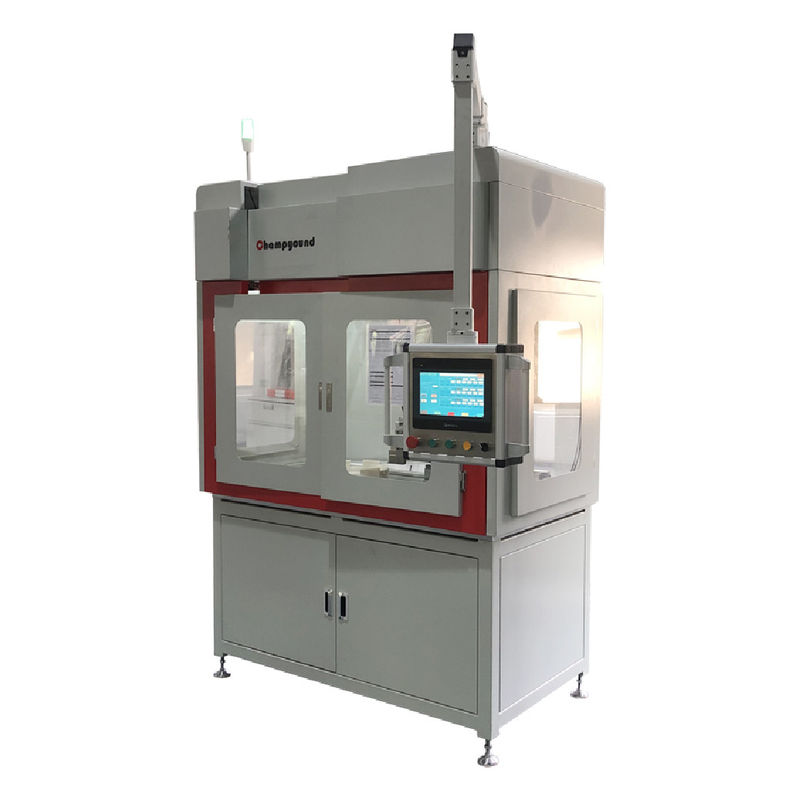

Flat Wire Stator Servo-Controlled Flat Cutting Machine for Superior Motor Coil Quality



1. Descriptions:



The Servo-Controlled Flat Cutting Machine is designed for high-precision cutting of flat wire stators, ensuring clean and accurate sections for superior motor performance. Equipped with a servo transmission system, it allows for arbitrary angle cutting and is capable of performing same-diameter cutting with each pass, ensuring a clean and precise cut every time.



The Servo-Controlled Flat Cutting Machine features excellent adaptability, with the ability to change tooling for a stack height range of (30-370)mm and a diameter range of (135-440)mm. It achieves a cutting precision of ±0.2mm. The machine is compatible with cores of different slot numbers, simply by changing the model in the parameter interface. Additionally, the tool life can be monitored, and it is capable of automatically sending an alarm and reminder once the tool life exceeds 200,000 cycles.



2. Specifications:



Machine Name Servo-Controlled Flat Cutting Machine
Operation Mode Automation
Cutting Method Servo Control
Control System PLC Program
Operation Mode Automation
Air Pressure 0.4-0.7Mpa
Power 6kW
Voltage 380V
Drive System Servo Drive Arbitrary Angle Cutting
Cutting Module Servo Cutting Module Concentric Flat Cutting
Applicability Range Stack Height 30–370 MM
Diameter 135–440 MM
Cutting Precision Precision ±0.2 MM



3. Advantages:



  1. With the Servo-Controlled Flat Cutting Machine advanced cutting technology and a precise control system, the machine achieves high-precision flat cutting operations, ensuring smooth wire cut surfaces and accurate dimensions.

  2. The automated workflow of the Servo-Controlled Flat Cutting Machine greatly improves the speed of cutting, allowing large quantities of flat wires to be processed in a short space of time, effectively increasing production efficiency.

  3. The Servo-Controlled Flat Cutting Machine eliminates as much as possible the instability of manual operation and ensures a high degree of consistency in the quality of each cut surface, thus improving the stability and reliability of the motor performance.

  4. Equipped with an easy-to-operate human-machine interface and intelligent control system, the Servo-Controlled Flat Cutting Machine can be operated by the operator after simple training, which reduces the operating difficulty and training cost.

  5. The automated operation of the Servo-Controlled Flat Cutting Machine avoids direct human contact with the cut parts, reducing the risk of workplace accidents and ensuring the safety of the production process.



4. Production Line Profile:

The Champyound motor stator line is widely used for the production of many types of motor stators and consists of several machines such as wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine in the stator line is independent and can also be connected to a conveyor belt.



5. OEM/ODM Profile:

Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.



6. R&D Profile:

Champyound offers a wide range of technical consultancy and turnkey project services for the manufacture of flat wire motors. We pride ourselves on our excellent service, professional team and reliable quality. Our services range from motor costing, manufacturing technology and staff training to complete turnkey projects.
