Armature Flat Wire DC Motor Stator Needle Winding Machine Automation

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Pressing Machine

Application Area:

Medium And Large Mining Truck Stator

Press Method:

Servo Control

Operation Mode:

Automation

Control System:

PLC Program

Pressure Value Setting:

0-50 KN (Set According To Product)

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

2.5KW

Voltage:

220V

Warranty:

12 Months

Highlight:

High Light

Highlight:

armature stator needle winding machine

DC motor stator needle winding machine

DC motor armature coil winding machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

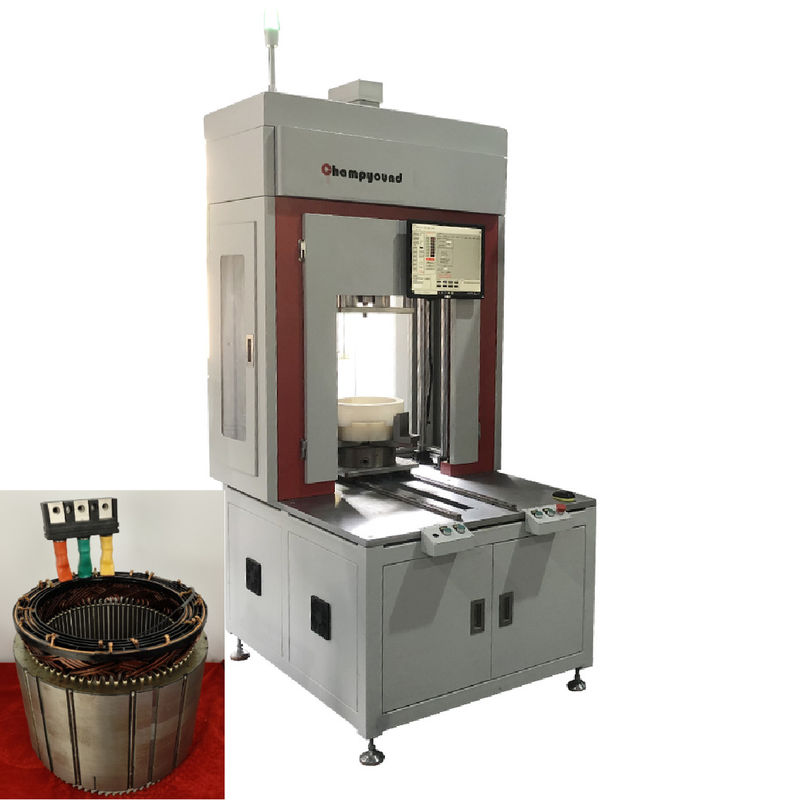

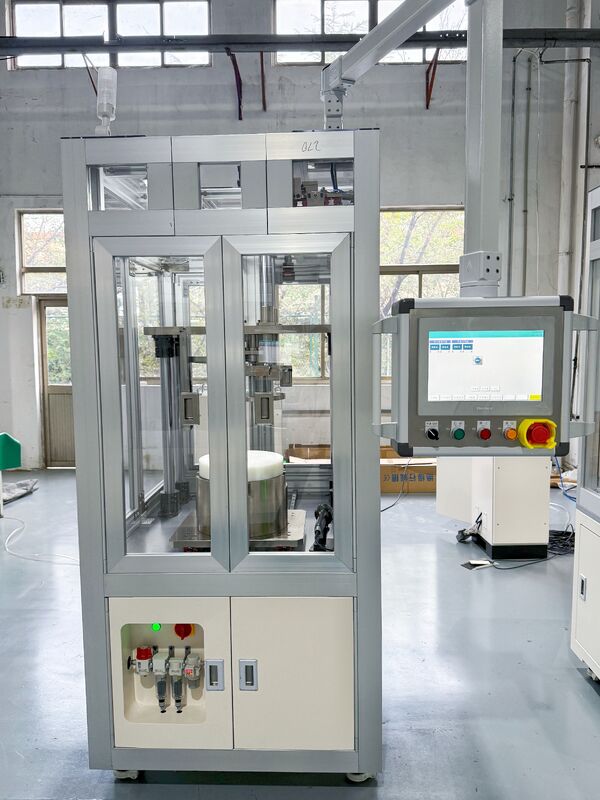

Flat Wire Stator Servo-Controlled Pressing Machine for Medium and Large Mining Truck Stator

Description

The Servo-Controlled Pressing Machine delivers precision pressing for flat wire motor stators, ensuring reliable motor performance. Featuring a servo press mechanism with real-time pressure parameter control, it displays pressure curve values on a computer interface.

With an adjustable pressure range of 0-50KN, the machine maintains consistent pressure application throughout the entire pressing process, tailored to specific product requirements.

Specifications

Machine Name	Servo-Controlled Pressing Machine
Application Area	Light Mining Truck Stator
Operation Mode	Automation
Control System	PLC Program
Specification	Customized
Air Pressure	0.4-0.7Mpa
Power	2.5kW
Voltage	220V
Pressing Mechanism	Servo Pressing Mechanism
Pressure Control	Real-time Pressure Control \| 0-50 kN (Adjustable)
Control Type	Full-range Control

Stator Specifications

Product Outer Diameter	Layers of Flat Wire	Stator Stack Height
280mm	6 layers	264mm

Advantages

Delivers exceptional crimping accuracy and speed for precise wire positioning and enhanced production efficiency
Ensures uniform crimping quality in mass production, minimizing variations from manual operations
Prevents common manual errors like misplacement or bias, reducing defect rates
Maintains stable performance during extended operations, minimizing production disruptions
Offers flexible parameter adjustment to accommodate various flat wire motor specifications
Includes data acquisition and monitoring for recording and analyzing crimping data to optimize processes

Production Line Profile

The Champyound motor stator line specializes in producing various motor stators, featuring independent machines including wire forming, press-in, widening, head twisting, flat cutting, and welding machines. These can operate independently or be connected via conveyor belt.

OEM/ODM Profile

Champyound's professional team of engineers and skilled professionals delivers optimal flat wire motor manufacturing solutions through advanced machinery, strict process controls, and an extensive service network.

R&D Profile

Champyound provides comprehensive technical consultancy and turnkey project services for flat wire motor manufacturing, including motor costing, manufacturing technology, staff training, and complete project solutions.

About Champyound

Based in Suzhou's industrial hub, Champyound specializes in R&D, manufacturing, and sales of flat wire motor machines. Our products serve diverse applications including home appliances, industrial motors, compressors, AC motors, servo motors, and generators.
