Flat Wire Single Stator Automatic Winding Machine 370mm 2.5kW

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Servo-Controlled Pressing Machine

Application Area:

Light Mining Truck Stator

Press Method:

Servo Control

Operation Mode:

Automation

Control System:

PLC Program

Pressure Value Setting:

0-50 KN (Set According To Product)

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

2.5KW

Voltage:

220V

Warranty:

12 Months

Highlight:

High Light

Highlight:

370mm single stator automatic winding machine

2.5kW single stator automatic winding machine

2.5kW rotor coil winding machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

Flat Wire Single Stator Automatic Winding Machine 370mm 2.5kW

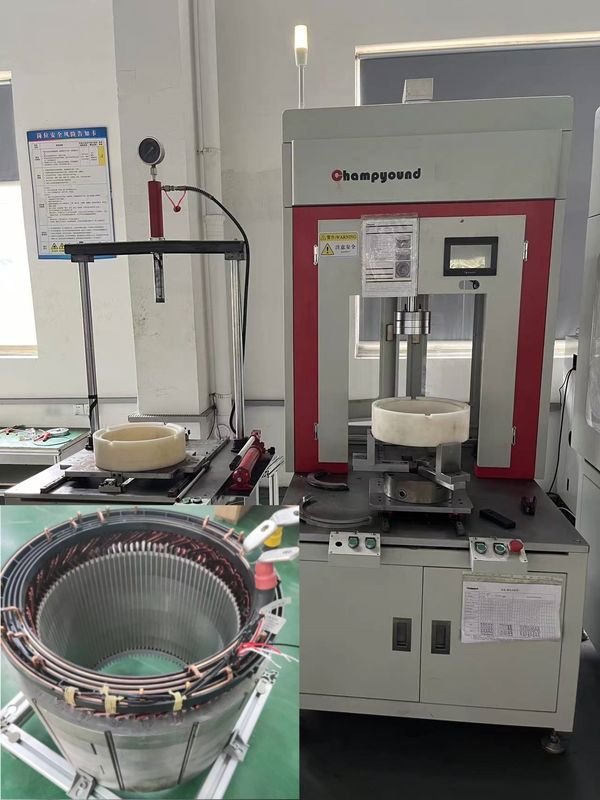

Flat Wire Stator Servo-Controlled Pressing Machine for Light Mining Truck Stator

Product Overview

The Servo-Controlled Pressing Machine delivers precision pressing for flat wire motor stators, ensuring optimal motor performance. Featuring a servo press mechanism, it provides real-time pressure parameter control with computer-displayed pressure curve values.

Offering a 0-50KN adjustable pressure range, this machine maintains consistent pressure application throughout the entire pressing process, tailored to specific product requirements.

Technical Specifications

Feature	Details
Application Area	Light Mining Truck Stator
Operation Mode	Automation
Control System	PLC Program
Specification	Customized
Air Pressure	0.4-0.7Mpa
Power	2.5kW
Voltage	220V
Pressing Mechanism	Servo Pressing Mechanism
Pressure Control	Real-time Pressure Control \| 0-50 kN (Adjustable)
Control Type	Full-range Control

Stator Specifications

Product Outer Diameter	Layers of Flat Wire	Stator Stack Height
370mm	8 layers	226mm

Key Advantages

Delivers exceptional crimping accuracy and speed for precise wire positioning and enhanced production efficiency
Ensures uniform crimping quality in mass production, minimizing manual operation discrepancies
Prevents common manual errors (misplacement/bias) to reduce defect rates
Maintains stable performance during extended operations, reducing production disruptions
Offers flexible parameter adjustments for diverse flat wire motor specifications
Includes data acquisition/monitoring systems for production optimization and quality assurance

Production Line Capabilities

Our motor stator production line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines, and welding machines. Each machine operates independently or can be integrated via conveyor belt systems.

Custom Manufacturing Services

Our professional team combines advanced machinery with stringent process controls to deliver optimal flat wire motor manufacturing solutions through OEM/ODM services.

Research & Development

We provide comprehensive technical consultancy and turnkey project services, including motor costing, manufacturing technology, staff training, and complete production solutions.

Company Profile

Located in Suzhou's industrial hub, we specialize in R&D, manufacturing, and sales of flat wire motor machines for applications including home appliances, industrial motors, compressors, AC motors, servo motors, and generators.
