Product Description:

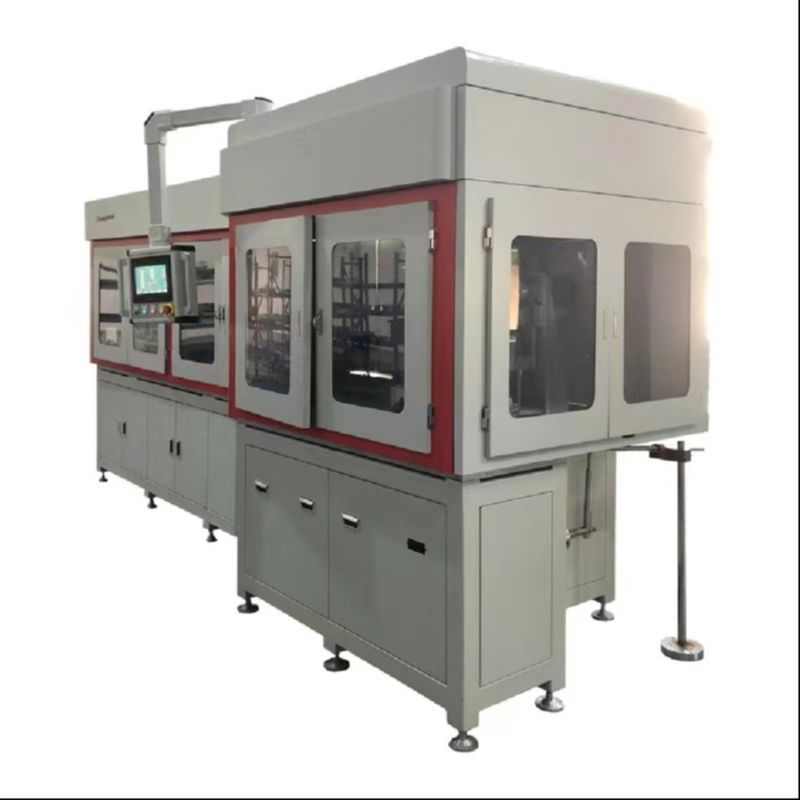

The Hairpin Winding Machine is a state-of-the-art piece of equipment designed for precision winding of hairpin coils. With a winding speed of 900-1200 pieces per hour, this machine is ideal for high-volume production environments where efficiency is key.
Featuring a controller that allows for 1 second per slot, the Hairpin Winding Machine ensures consistent and accurate winding every time. This level of control is essential for producing hairpin coils with the precision required for various applications.
One of the standout features of this machine is its impressive paint removal length accuracy of ±0.10 mm. This level of accuracy is crucial for maintaining the quality and integrity of the hairpin coils being produced, ensuring that each coil meets the required specifications.
Identified by the model number WIND-AWF-F, this Hairpin Winding Machine is a reliable and efficient tool for any manufacturing operation that requires precise winding of hairpin coils. The model number serves as a reference point for easy identification and maintenance of the machine.
Designed to work with flat wires ranging from 1.0 mm to 5.0 mm in specification, this machine is versatile and capable of handling a wide range of wire sizes. This flexibility makes it suitable for various applications that require different wire thicknesses.
In conclusion, the Hairpin Winding Machine is a top-of-the-line solution for precision winding of hairpin coils. With its impressive winding speed, precise controller, accurate paint removal length, specific model number, and compatibility with various flat wire specifications, this machine is a must-have for any manufacturing facility looking to achieve superior quality and efficiency in their production processes.
Features:
-
Product Name: Hairpin Winding Machine
-
Winding Method: Hairpin Winding
-
Power Supply: 220V/50Hz
-
Compressed Air Requirement: 0.4-0.7 MPa
-
After Sales: Engineer Available For Support
-
Paint Removal Length Accuracy: ±0.10 Mm
Applications:
The Hairpin Winding Machine by Champyound is a versatile and efficient tool designed for various product application occasions and scenarios in the field of motor manufacturing. Originating from China and certified with ISO9001:2015, this machine offers high-quality winding capabilities suitable for a wide range of needs.
With a minimum order quantity of 1 set and a negotiable price, the Hairpin Winding Machine comes in packaging details of plywood case with plastic bag or other packages suitable for sea transport, ensuring safe delivery to customers. The delivery time for this machine is estimated to be 4-6 weeks, with payment terms accepted in L/C or T/T.
Equipped with a supply ability of 1 set per 4-6 weeks, this machine is compatible with flat wire specifications ranging from 1.0-5.0 mm and winding lengths between 300-950 mm. It also features a high voltage test capability above 2000V after 3D forming, ensuring the safety and reliability of the winding process.
The Hairpin Winding Machine requires a compressed air supply of 0.4-0.7 MPa and operates on a power supply of 220V/50Hz, making it suitable for various industrial settings. Its automated winding functionality streamlines the manufacturing process, making it ideal for mass production scenarios.
Customization:
Product Customization Services for the Hairpin Winding Machine:
Brand Name: Champyound
Place of Origin: China
Certification: ISO9001:2015
Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT
Delivery Time: 4-6 WEEKS
Payment Terms: L/C, T/T
Supply Ability: 1 SET PER 4-6 WEEKS
Software Integration: PLC Control With HMI Interface
Automation Level: Fully Automated (with Automatic Mold Change And Unloading)
After Sales: Engineer Available For Support
Applicable Winding Length: 300-950 Mm
Winding Speed: 900-1200 Pieces Per Hour
Keywords: automated winding, Precision, automated winding
