Stator Insertion Machine
>

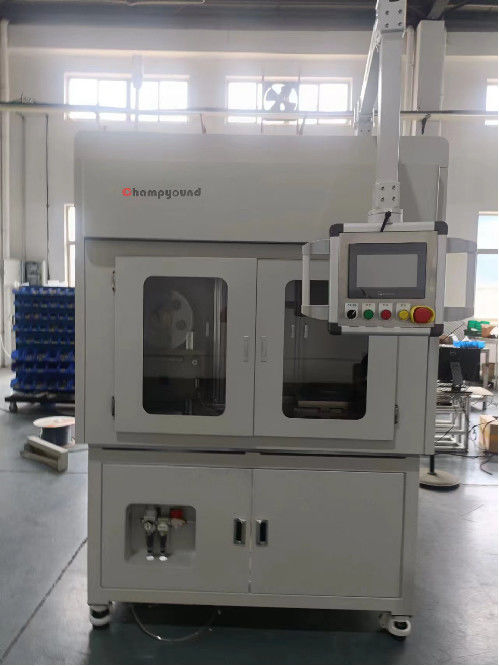

2.2kW Automatic Insulation Paper Armechar Winding Machine Single Stator OEM

2.2kW Automatic Insulation Paper Armechar Winding Machine Single Stator OEM

Product Details:
Place of Origin: China
Brand Name: Champypund
Certification: ISO9001:2015
Detail Information
Place of Origin:
China
Brand Name:
Champypund
Certification:
ISO9001:2015
Name:
Automatic Insulation Paper Machine
Application Area:
Flat Wire Stator
Security System:
Auto-Alert Durable Cutting System
Operation Mode:
Automation
Automation Level:
Highly Automated
Control System:
PLC Program
Air Pressure:
(0.4-0.7)Mpa
Voltage:
220V
Power:
2.5KW
Specification:
Customized
Warranty:
12 Months
Cutting Blade Lifespan:
> 200,000 Cycles
Transmission:
Automatic Paper Quick-changing And Feeding
Trading Information
Minimum Order Quantity:
1 SET
Price:
NEGOTIABLE
Packaging Details:
PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT
Delivery Time:
4-6 WEEKS
Payment Terms:
L/C, T/T
Supply Ability:
1 SET PER 4-6 WEEKS
Product Description

Flat Wire Stator Automatic Insulation Paper Machine with Auto-Alert Durable Cutting System



1. Descriptions:



The Automatic Insulation Paper Machine is designed for precision and efficiency in the flat wire motor industry. Its primary components include a tensioning mechanism, paper feeding system, paper forming unit, cutting module, paper pushing assembly, and rotating mechanisms. This machine is built to ensure smooth and accurate insertion of insulation paper into stators, contributing to the production of high-quality motors.



The Automatic Insulation Paper Machine excels in adaptability, allowing for quick production changes with minimal adjustments. For the same type of core, it requires only a change in the paper feed length and parameters. Different core types can be accommodated by simply replacing the paper forming mold, enabling diverse production needs. The system's precision tension control ensures that the paper is delivered smoothly and flatly, which is crucial for consistent motor performance. Additionally, the machine features a climate-controlled system to maintain the insulation paper's properties, ensuring reliability and stability in every motor stator produced.



2. Specifications:



Machine Name Automatic Insulation Paper Machine
Application Area Flat Wire Stator
Operation Mode Automation
Automation Level Highly Automation
Control System PLC Program
Operating System Auto-Alert Durable Cutting System
Specification Customized
Air Pressure 0.4-0.7Mpa
Voltage 220V
Power 2.2kW
Main Structure Tensioning, Unwinding, Paper Forming, Cutting, Pushing, Rotating, etc.
Cutting Blade Lifespan Compatible with cores of different diameters, stack heights from 35mm to 220mm.
Quick Production For the same model of stator, changing the paper feed length and parameters allows for rapid production.
Mold Change

For production of other model stators, changing the mold is sufficient.

Tension Adjustment Adjustment of paper tension during the feeding process to ensure flat and smooth paper delivery.
Temperature and Humidity Control A constant temperature and humidity control system for the insulation paper to ensure its properties remain unchanged.
Security and Monitoring Control Incorporating interlocking programs, guidance mechanisms, protective systems, and sensor monitoring with alarm systems for enhanced security and operational oversight.



3. Advantages:



  1. The Automatic Insulation Paper Machine is capable of performing paper insertion tasks at high speeds, significantly enhancing production efficiency to meet the demands of mass production.
  2. The Automatic Insulation Paper Machine ensures accurate positioning and depth of paper insertion through an advanced control system and meticulously engineered mechanical components, guaranteeing consistent and stable product quality.
  3. The Automatic Insulation Paper Machine maintains reliable performance over extended periods of operation, minimizing equipment failures and maintenance requirements, thus ensuring continuous production.
  4. Precise paper insertion operations contribute to improved motor insulation and heat dissipation performance, thereby enhancing the overall quality and reliability of the motor.
  5. The Automatic Insulation Paper Machine, typically equipped with a straightforward and intuitive user interface and a comprehensive maintenance system, making it easy for operators to manage and perform daily upkeep of the equipment.



4. Production Line Profile:

The Champyound motor stator line is widely used for the production of many types of motor stators and consists of several machines such as wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine in the stator line is independent and can also be connected to a conveyor belt.



5. OEM/ODM Profile:

Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.



6. R&D Profile:

Champyound offers a wide range of technical consultancy and turnkey project services for the manufacture of flat wire motors. We pride ourselves on our excellent service, professional team and reliable quality. Our services range from motor costing, manufacturing technology and staff training to complete turnkey projects.
