Automated Servo-Controlled Alternator Stator Flat Wire Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Machine Name:

Automated Laser Welding Machine

Operation Mode:

Automation

Application Area:

Flat Wire Stator

Weld Angle:

Arbitrary Angle

Control System:

PLC Program

Welding Accuracy:

±0.05mm

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

10KW

Voltage:

380V

Warranty:

12 Months

Highlight:

High Light

Highlight:

Automated Stator Coil Welding Machine

Alternator Stator Coil Welding Machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

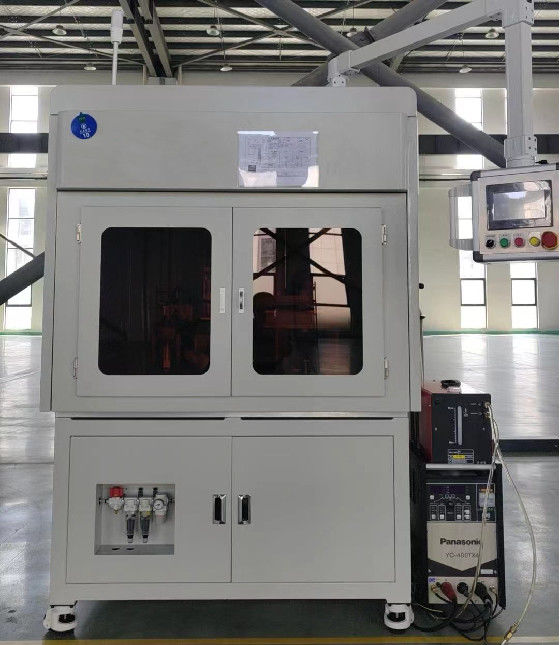

Automated Servo-Controlled Alternator Stator Flat Wire Welding Machine

Flat Wire Stator Automated Arbitrary Angle Laser Welding Machine with Adaptive Welding Control Technology

The Automated Laser Welding Machine features a servo transmission system enabling precise arbitrary angle welding. Integrated with PLC control and an intuitive LCD touchscreen for parameter adjustment, this system combines reliability with user-friendly operation.

Adaptable to various stator dimensions, the machine accommodates stack heights from 30-370mm and diameters from 135-440mm. Quick model changes for different slot counts are achieved through the parameter interface. The intelligent welding system automatically detects and re-welds substandard points, ensuring consistent quality.

Technical Specifications

Feature	Specification
Welding Method	Arbitrary Angle Laser Welding
Welding Mechanism	Servo Motor for Welding
Operation Mode	Automation
Drive System	Servo Drive System
Angle Segmentation	Arbitrary Angle Cutting
Control System	PLC Control \| Touchscreen Interface
Stack Height Range	30-370 mm
Diameter Range	135-440 mm
Positional Deviation	±0.05 mm
Wire Width Range	1-6 mm
Wire Thickness Range	0.5-2 mm
Quality Assurance	Stability and Consistency of Weld Quality

Key Advantages

High Efficiency: High welding speed enhances production throughput
Precision Control: Accurate energy output regulation prevents overheating/underheating defects
Superior Weld Quality: Uniform, robust seams free from porosity/cracks, exceeding industry standards
Repeatable Accuracy: ±0.05mm positional consistency for each weld
Operational Reliability: Stable performance during continuous operation with minimal downtime

Production Line Integration

The Champyound motor stator production line incorporates specialized equipment including wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines, and welding machines. Each machine operates independently or can be integrated via conveyor belt systems.

OEM/ODM Capabilities

Champyound's engineering team delivers comprehensive flat wire motor manufacturing solutions through advanced machinery, rigorous process controls, and global service support.

Research & Development Services

Our turnkey project services encompass motor costing analysis, manufacturing technology implementation, staff training programs, and complete production line setup for flat wire motor applications.
