Fully Automatic Motor Stator Armature Flat Wire Winding Machine Laser Welding

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Machine Name:

Automated Laser Welding Machine

Operation Mode:

Automation

Application Area:

Aircraft Motor Stator

Weld Method:

Servo Control

Control System:

PLC Program

Welding Accuracy:

±0.05mm

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

10KW

Voltage:

380V

Warranty:

12 Months

Highlight:

High Light

Highlight:

Laser Welding armature coil winding machine

Motor Stator armature coil winding machine

Laser Welding fully automatic motor winding machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

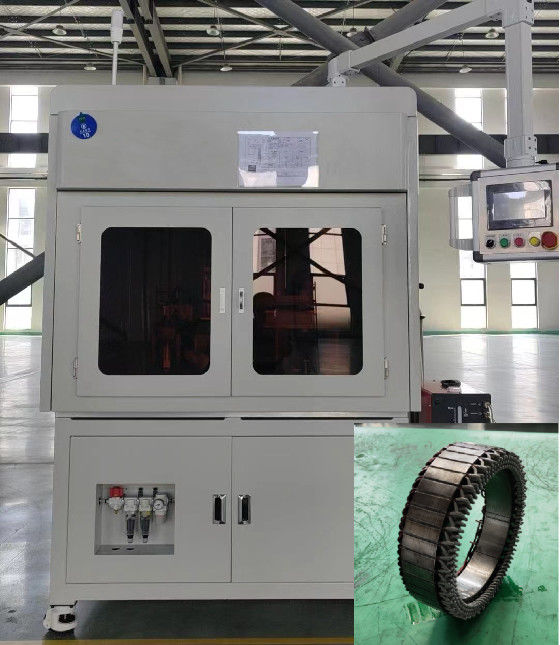

Fully Automatic Motor Stator Armature Flat Wire Winding Machine with Laser Welding

Flat Wire Stator Automated Servo-Controlled Welding Machine for Aircraft Motor Stator

The Automated Laser Welding Machine features a servo transmission system enabling precise angle cutting and welding, delivering clean, accurate results. With PLC control and an intuitive LCD touchscreen interface, this machine offers reliable operation and easy parameter adjustment for maximum adaptability.

Key Specifications

Feature	Specification
Application Area	Aircraft Motor Stator
Welding Method	Laser Welding
Operation Mode	Fully Automated
Control System	PLC with Touchscreen Interface
Stack Height Range	30-370 mm
Diameter Range	135-440 mm
Positional Accuracy	±0.05 mm
Wire Width Range	1-6 mm
Wire Thickness Range	0.5-2 mm

Stator Specifications

Outer Diameter	Wire Layers	Stack Height
140mm	4 layers	78mm

Performance Advantages

High-speed welding capability significantly boosts production efficiency
Precise energy output control ensures stable heat input, preventing defects
Produces uniform, robust welds free from porosity or cracks
Exceptional repeat positioning accuracy (±0.05mm) for consistent results
Maintains stable performance during continuous operation with low failure rates

Production Line Capabilities

Our comprehensive motor stator production line includes specialized equipment for wire forming, press-in, widening, head twisting, flat cutting, and welding. Each machine operates independently or can be integrated via conveyor belt systems for automated production flows.

Technical Support Services

Our expert team provides complete technical consultancy and turnkey solutions for flat wire motor manufacturing, including cost analysis, production technology, staff training, and full project implementation.

About Our Company

Based in Suzhou's industrial hub, we specialize in R&D and manufacturing of flat wire motor machines for diverse applications including home appliances, industrial motors, compressors, AC motors, servo motors, and generators.
