Alternator Stator Electric Motor Flat Wire Welding Machine Automated

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Machine Name:

Automated Laser Welding Machine

Operation Mode:

Automation

Application Area:

Flat Wire Stator

Weld Angle:

Arbitrary Angle

Control System:

PLC Program

Welding Accuracy:

±0.05mm

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

10KW

Voltage:

380V

Warranty:

12 Months

Highlight:

High Light

Highlight:

Alternator stator electric motor coil winding machine

Automated electric motor coil winding machine

Automated alternator stator winding machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

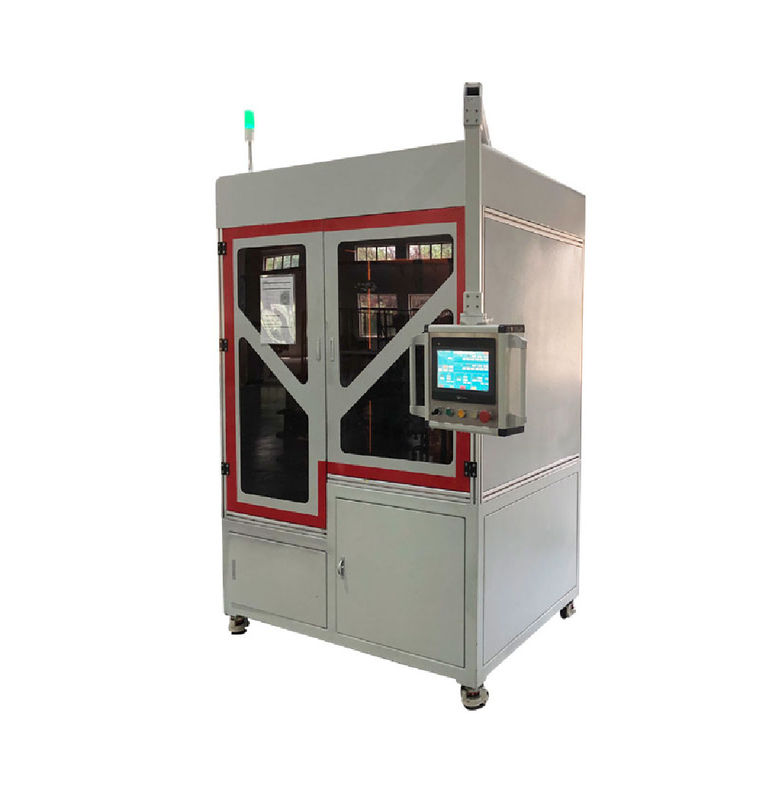

Flat Wire Stator Automated Arbitrary Angle Laser Welding Machine

This precision welding system features adaptive control technology for superior weld quality in alternator stator and electric motor manufacturing applications.

Machine Overview

Our servo-driven laser welding system delivers arbitrary angle welding with exceptional accuracy. PLC-controlled operation with intuitive LCD touchscreen interface enables precise parameter adjustment for diverse manufacturing requirements.

Technical Specifications

Feature	Specification
Welding Method	Arbitrary Angle Laser Welding
Drive System	Servo Motor with PLC Control
Stack Height Range	30-370 mm
Diameter Range	135-440 mm
Positional Accuracy	±0.05 mm
Wire Compatibility	1-6 mm width, 0.5-2 mm thickness

Key Advantages

High-Speed Precision: Significantly increases production throughput while maintaining weld quality
Thermal Management: Precise energy output control prevents overheating/underheating defects
Consistent Results: Produces uniform, defect-free welds that exceed industry standards
Reliable Operation: Maintains stable performance during continuous production runs
Adaptive Quality Control: Automatic detection and re-welding of substandard points

Production Line Integration

This welding system integrates seamlessly with complete stator production lines including wire forming, press-in, widening, twisting, and cutting stations. Configured for standalone operation or conveyor-connected automation.

Manufacturing Solutions

Our engineering team provides comprehensive flat wire motor manufacturing solutions including technical consultation, process development, staff training, and turnkey project implementation.
