Aircraft Stator Flat Wire Electric Motor Rewinding Machine Automatic Twisting

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Servo-Controlled Twisting Machine

Operation Mode:

Automation

Application Area:

Aircraft Motor Stator

Twist Method:

Servo Control

Control System:

PLC Program

Transmission Method:

Single-Stage Multi-Layer Precision Twisting And Forming

Customization:

Allowed

Air Pressure:

(0.4-0.7)Mpa

Power:

3.5KW

Voltage:

380V

Warranty:

12 Months

Highlight:

High Light

Highlight:

Aircraft Stator electric motor rewinding machine

Automatic electric motor rewinding machine

Aircraft Stator automatic motor coil winding machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

Aircraft Stator Flat Wire Electric Motor Rewinding Machine Automatic Twisting

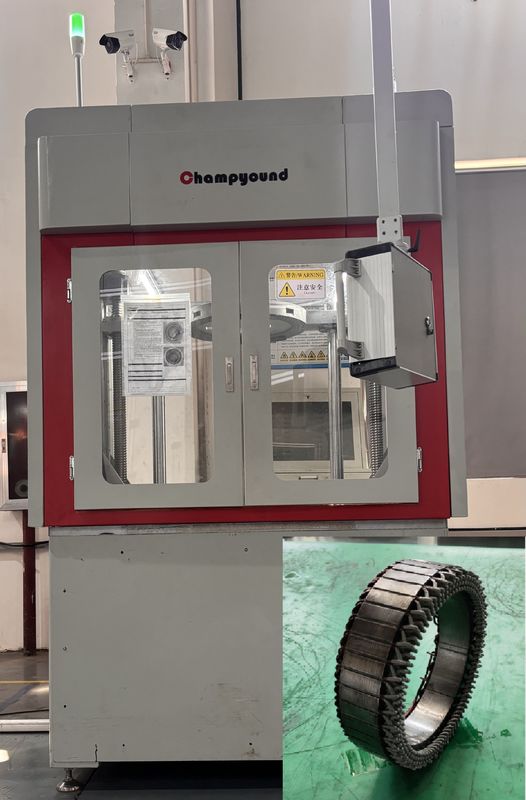

Flat Wire Stator Servo-Controlled Twisting Machine

This precision servo-controlled twisting machine is specifically designed for aircraft motor stators, featuring advanced PLC control and touchscreen interface for precise ±45 degree twisting in both directions. The system handles multi-layer twisting operations with high accuracy while maintaining insulation integrity and core alignment.

Key Specifications

Feature	Specification
Application Area	Aircraft Motor Stator
Operation Mode	Automation
Control System	PLC Program
Air Pressure	0.4-0.7MPa
Voltage	380V
Power Consumption	Approximately 3.5 kW
Angle Control	±45 Degrees

Stator Specifications

Outer Diameter	Wire Layers	Stack Height
210mm	8 layers	40mm

Key Advantages

Precision control of hairpin winding angles, turns and tightness for consistent flat wire windings
Adjustable settings and interchangeable tooling for various motor models
Automated process increases speed and eliminates manual inconsistencies
Ensures reliable operation and extends motor life through consistent twist quality
Designed for seamless integration into automated production lines

Production Line Capabilities

Our comprehensive motor stator production line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine operates independently or can be connected via conveyor belt for integrated production.

Technical Expertise

Champyound offers complete technical consultancy and turnkey project services for flat wire motor manufacturing, including motor costing, manufacturing technology, staff training, and complete production solutions. Our team of experienced engineers provides the most optimal manufacturing solutions.

About Our Company

Located in Suzhou's industrial hub, Champyound specializes in R&D, manufacturing and sales of flat wire motor machines. Our equipment serves diverse applications including home appliance motors, industrial motors, compressor motors, AC motors, servo motors and generators.
