Stator Twisting Machine
>
Customized Automatic Motor Coil Winding Machine Stator Winder LCD Touchscreen
Customized Automatic Motor Coil Winding Machine Stator Winder LCD Touchscreen
  • Customized Automatic Motor Coil Winding Machine Stator Winder LCD Touchscreen
  • Customized Automatic Motor Coil Winding Machine Stator Winder LCD Touchscreen

Customized Automatic Motor Coil Winding Machine Stator Winder LCD Touchscreen

Product Details:
Place of Origin: China
Brand Name: Champypund
Certification: ISO9001:2015
Detail Information
Place of Origin:
China
Brand Name:
Champypund
Certification:
ISO9001:2015
Name:
Servo-Controlled Twisting Machine
Operation Mode:
Automation
Application Area:
Medium And Large Mining Truck Stator
Twist Method:
Servo Control
Control System:
PLC Program
Transmission Method:
Single-Stage Multi-Layer Precision Twisting And Forming
Air Pressure:
(0.4-0.7)Mpa
Power:
3.5KW
Voltage:
380V
Warranty:
12 Months
Customization:
Allowed
Highlight:

High Light

Highlight:

Customized automatic motor coil winding machine

,

LCD touchscreen automatic motor coil winding machine

,

LCD touchscreen stator winder

Trading Information
Minimum Order Quantity:
1 SET
Price:
NEGOTIABLE
Packaging Details:
PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT
Delivery Time:
4-6 WEEKS
Payment Terms:
L/C,T/T
Supply Ability:
1 SET PER 4-6 WEEKS
Product Description
Customized Automatic Motor Coil Winding Machine Stator Winder LCD Touchscreen

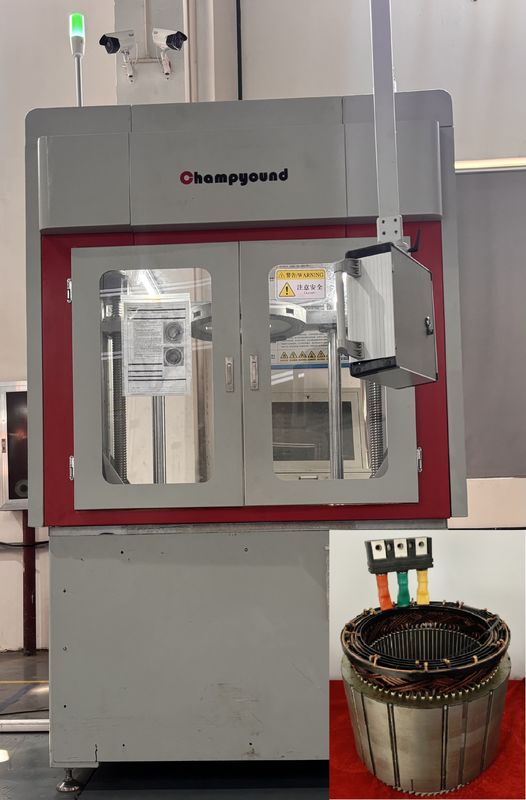

Flat Wire Stator Servo-Controlled Twisting Machine for Medium and Large Mining Truck Stator
The Servo-Controlled Twisting Machine is engineered for precision twisting of flat wire stator coils in mining applications. Featuring servo motor control and PLC programming, this automated system delivers ±45 degree twisting accuracy through an intuitive LCD touchscreen interface.
Technical Specifications
Feature Specification
Application Area Medium and Large Mining Truck Stator
Operation Mode Automation
Control System PLC Program
Air Pressure 0.4-0.7MPa
Voltage 380V
Power Consumption Approximately 3.5 kW
Angle Control ±45 Degrees
Transmission System Multi-Axis Gear System
Stator Specifications
Outer Diameter Wire Layers Stack Height
280mm 6 layers 264mm
Key Advantages
  • Precision control of hairpin winding angles, turns and tightness for consistent flat wire windings
  • Adjustable settings and interchangeable tooling for diverse motor model requirements
  • Automated process increases speed and eliminates manual operation inconsistencies
  • Ensures reliable motor operation and extended service life through consistent twist quality
  • Designed for seamless integration into automated production lines
Production Line Capabilities
Our motor stator production line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine operates independently or can be connected via conveyor belt for integrated automation.
Manufacturing Expertise
Our professional team combines advanced machinery with stringent process controls to deliver optimal flat wire motor manufacturing solutions. We offer comprehensive services from technical consultancy to complete turnkey projects, including motor costing, manufacturing technology and staff training.
About Our Company
Located in Suzhou's industrial hub, we specialize in R&D, manufacturing and sales of flat wire motor machines. Our equipment serves diverse applications including home appliances, industrial motors, compressors, AC motors, servo motors and generators.
