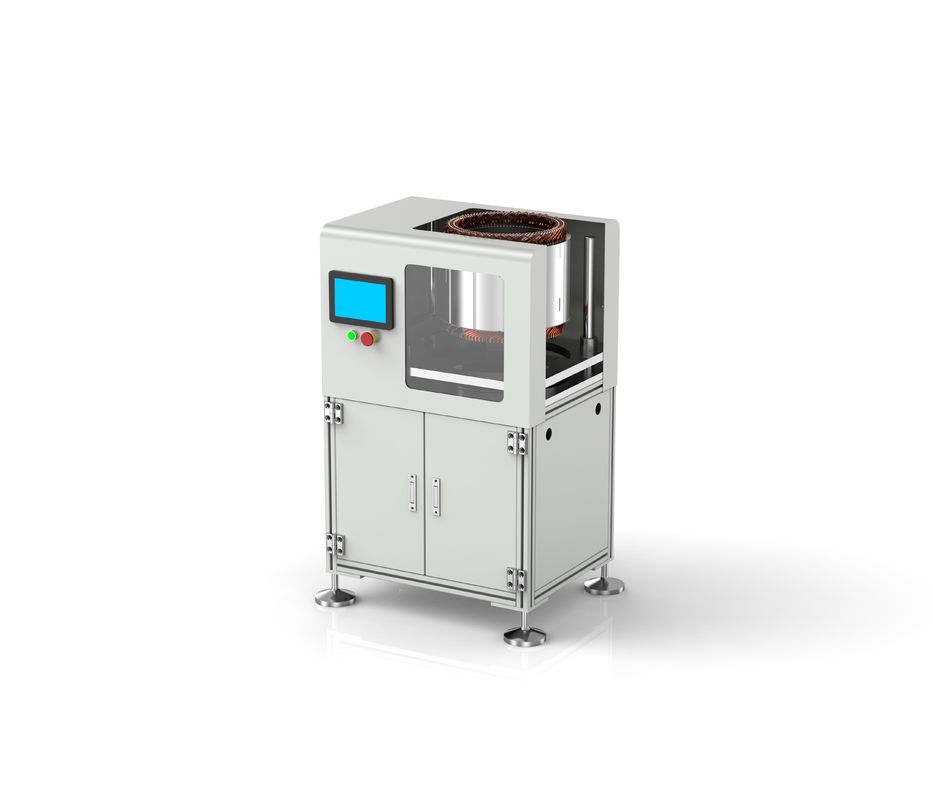

Programmable Depth Coater for Flat Wire Stators 135-440mm Diameter
1. Descriptions:
Industry-first coater for large Ø135-440mm stators using high-response pressure valves for fluidization. Programmable coating depth (5-100mm) and >0.35mm thickness ensure insulation integrity, with dust collection covering 100% work area.
2. Specifications:
| Fluidization Control |
High-precision pressure valve for coating tank |
| Dust Managenment |
Integrate dust collection system |
| Coating Thickness |
> 0.35 mm |
| Adjustable Parameters |
Clating depth and time |
| Compatibility |
Stack height: 30-370 mm ; Diameter: 135-440 mm |
3. Advantages:
-
Heavy-Duty Turntable
150kg capacity handles Ø440mm stators
-
Recipe Memory
One-touch recall for 50 winding profiles
-
Side-Draft Extraction
360° capture of airborne particles
4. Production Line Profile:
The Champyound motor stator line is widely used for the production of many types of motor stators and consists of several machines such as wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine in the stator line is independent and can also be connected to a conveyor belt.
5. OEM/ODM Profile:
Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.
6. R＆D Profile:
Champyound offers a wide range of technical consultancy and turnkey project services for the manufacture of flat wire motors. We pride ourselves on our excellent service, professional team and reliable quality. Our services range from motor costing, manufacturing technology and staff training to complete turnkey projects.
