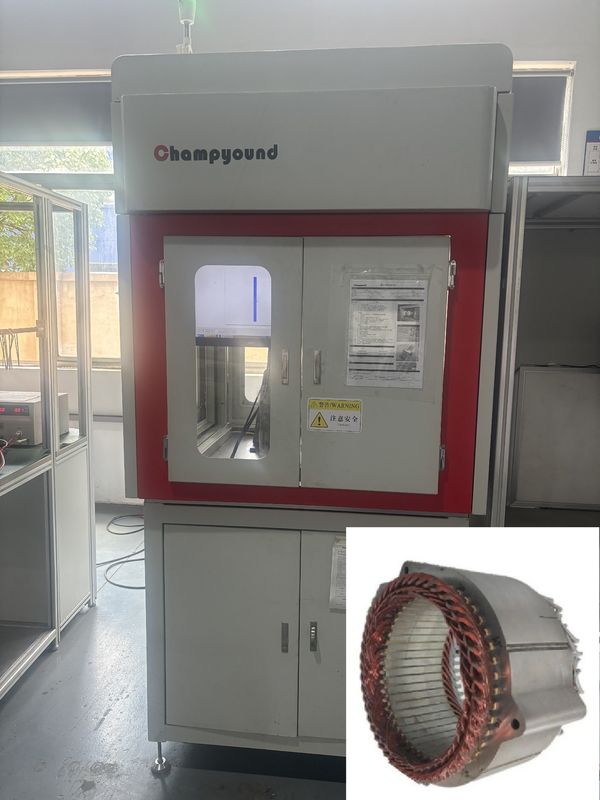

Flat Wire Stator Laser Paint Stripping Machine for Class B, C, D Passenger Car Stator
1. Descriptions:
The Laser Varnish Stripping Machine is designed for precision paint removal on flat wire stators, ensuring optimal insulation quality for high-performance electric motors. This advanced machine utilizes PLC control and a user-friendly touchscreen interface for easy operation and real-time process adjustments.
With the ability to adjust laser power and wavelength for various paint types and base materials, the Laser Varnish Stripping Machine ensures efficient and effective paint removal without damaging the stator. Featuring a high repeat accuracy of ±0.03mm and a working range of 25-70mm, it accommodates a broad spectrum of stator sizes. Pulsed laser technology, combined with high-speed scanning, allows for quick and comprehensive paint stripping while maintaining the integrity of the underlying layers.
2. Specifications:
Machine Name | Laser Paint Stripping Machine |
Stator Type | Class B, C, D Passenger Car Stator |
Operation Type | Automation |
Control System | PLC Program |
Specification | Customized |
Repeat Precision |
±0.03MM |
Working Range |
(25-70) MM |
Application Field |
Raw Material Paint Stripping |
Removal Process |
High-Frequency Pulsed Laser & High-Speed Galvanometer (Rotary Mirror) |
Removal Method |
Layer-By-Layer Multiple Removal |
3. Stator Specifications:
Product Outer Diameter | Layers of Flat Wire | Stator Stack Height |
220mm | 6 layers | 87mm |
4. Advantages:
5. Production Line Profile:
The Champyound motor stator line is widely used for the production of many types of motor stators and consists of several machines such as wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine in the stator line is independent and can also be connected to a conveyor belt.
6. OEM/ODM Profile:
Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.
7. R&D Profile:
Champyound offers a wide range of technical consultancy and turnkey project services for the manufacture of flat wire motors. We pride ourselves on our excellent service, professional team and reliable quality. Our services range from motor costing, manufacturing technology and staff training to complete turnkey projects.
8. About Champyound:
Located in Suzhou, a vibrant industrial and commercial center in the Yangtze River Delta, Champyound specializes in the R&D, manufacturing and sales of flat wire motor machines. Our machines manufactured in Suzhou are mainly designed for the production of flat wire motors, which are widely used in applications such as home appliance motors, industrial motors, compressor motors, AC motors, servo motors and generators, etc.
