380V DC Motor Winding Flat Wire Making Machine Widening Stator

Product Details:

Place of Origin:	China
Brand Name:	Champypund
Certification:	ISO9001:2015

Detail Information

Place of Origin:

China

Brand Name:

Champypund

Certification:

ISO9001:2015

Name:

Inter-turn Insulation Widening Machine

Type:

Flat Wire Stator

Widen Method::

Servo Control

Control System:

PLC Program

Operation Mode:

Automation

Inter-turn Insulation Flaring Precision:

±0.02mm

Air Pressure:

(0.4-0.7)Mpa

Power:

3.5KW

Voltage:

380V

Specification:

Customized

Warranty:

12 Months

Customization:

Allowed

Highlight:

High Light

Highlight:

Stator Widening Coil Making Machine

Widening Stator Coil Making Machine

Coil Making Stator Widening Machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

NEGOTIABLE

Packaging Details:

PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT

Delivery Time:

4-6 WEEKS

Payment Terms:

L/C,T/T

Supply Ability:

1 SET PER 4-6 WEEKS

Product Description

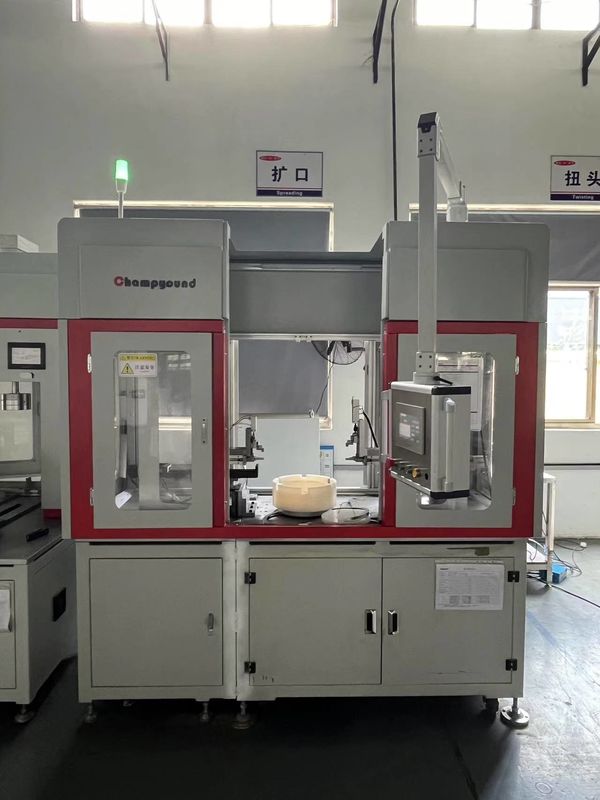

380V DC Motor Winding Flat Wire Making Machine Widening Stator

Innovative Flat Wire Stator Servo-Controlled Inter-turn Insulation Widening Machine with Adaptive Width Adjustment

Precision Engineering Solution

The Flat Wire Widening Machine is designed for flat wire motor stators, ensuring accurate slot flaring with servo-driven technology. Featuring a dual-head flaring mechanism, it accommodates stator dimensions with stack heights from 30-370mm and diameters from 135-440mm, maintaining flaring precision within ±0.02mm.

The servo-driven system independently operates two sets of clamps for automatic program switching and precise positioning. The flaring unit's jaw can be replaced without secondary alignment, streamlining operations and reducing downtime.

Technical Specifications

Machine Name	Servo Inter-turn Insulation Widening Machine
Stator Type	Flat Wire Stator
Operation Mode	Automation
Control System	PLC Program
Specification	Customized
Transmission Type	Servo Transmission
Air Pressure	(0.4-0.7)Mpa
Power	3.5kW
Voltage	380V
Expanding Mechanism	Servo Dual-Head
Applicable Range of Stacking Height	(30-370) mm
Applicable Diameter Range	(135-440) mm
Inter-turn Insulation Flaring Precision	±0.02mm

Key Advantages

Automated operation enhances flat wire motor forming efficiency for large-scale production
Eliminates manual inconsistencies for uniformly high and stable forming quality
Precisely repeatable operations ensure batch-to-batch quality uniformity
Highly adaptable to diverse flat wire motor requirements through parameter adjustments
User-friendly design simplifies maintenance, reduces downtime and costs

Production Line Capabilities

The Champyound motor stator line includes wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine operates independently or can be connected via conveyor belt.

OEM/ODM Services

Champyound's professional team offers comprehensive flat wire motor manufacturing solutions with advanced machinery, stringent process controls, and extensive service support.

Research & Development

Champyound provides technical consultancy and turnkey project services for flat wire motor manufacturing, including motor costing, manufacturing technology, staff training, and complete project solutions.
