PLC Alternator Stator Ac Motor Winding Machine Customization

PLC Alternator Stator Ac Motor Winding Machine Customization

Product Details:
Place of Origin: China
Brand Name: Champypund
Certification: ISO9001:2015
Detail Information
Place of Origin:
China
Brand Name:
Champypund
Certification:
ISO9001:2015
Name:
Laser Varnish Stripping Machine
Stator:
Class B, C Passenger Car Stator
Operation Mode:
Automation
Speed:
High-Speed
Control System:
PLC Program
Repeat Precision:
±0.03 MM
Working Range:
(25-70) MM
Removal Method:
Layer-By-Layer Multiple Removal
Removal Process:
High-Frequency Pulsed Laser & High-Speed Galvanometer (Rotary Mirror)
Specification:
Customized
Warranty:
12 Months
Highlight:

High Light

Highlight:

PLC ac motor winding machine

,

Customized ac motor winding machine

,

PLC alternator stator winding machine

Trading Information
Minimum Order Quantity:
1 SET
Price:
NEGOTIABLE
Packaging Details:
PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT
Delivery Time:
4-6 WEEKS
Payment Terms:
L/C, T/T
Supply Ability:
1 SET PER 4-6 WEEKS
Product Description

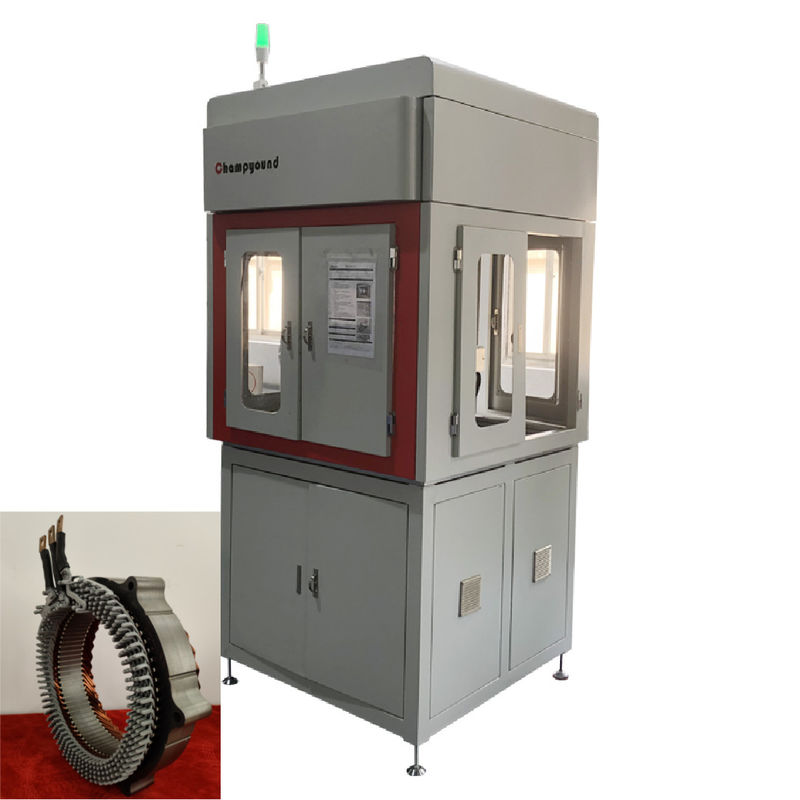

Flat Wire Stator Laser Varnish Stripping Machine for Class B, C Passenger Car Stator


1. Descriptions:



The Laser Varnish Stripping Machine is designed for precision paint removal on flat wire stators, ensuring optimal insulation quality for high-performance electric motors. This advanced machine utilizes PLC control and a user-friendly touchscreen interface for easy operation and real-time process adjustments.



With the ability to adjust laser power and wavelength for various paint types and base materials, the Laser Varnish Stripping Machine ensures efficient and effective paint removal without damaging the stator. Featuring a high repeat accuracy of ±0.03mm and a working range of 25-70mm, it accommodates a broad spectrum of stator sizes. Pulsed laser technology, combined with high-speed scanning, allows for quick and comprehensive paint stripping while maintaining the integrity of the underlying layers.



2. Specifications:



Machine Name Laser Varnish Stripping Machine
Stator Type Public Bus Stator
Operation Type Automation
Control System PLC Program
Specification Customized

Repeat Precision

±0.03MM

Working Range

(25-70) MM

Application Field

Raw Material Paint Stripping

Removal Process

High-Frequency Pulsed Laser & High-Speed Galvanometer (Rotary Mirror)

Removal Method

Layer-By-Layer Multiple Removal


3. Stator Specifications:



Product Outer Diameter Layers of Flat Wire Stator Stack Height
270mm 10 layers 34.5mm



4. Advantages:



  1. In the laser paint removal process, there is no direct contact between the Laser Varnish Stripping Machine and the workpiece, avoiding potential damage from physical friction and mechanical stress, and maximizing the protection of the structural integrity of the flat wire motor.
  2. The laser paint removal process does not generate chemical waste or harmful gases, causing no environmental pollution and meeting environmental protection requirements.
  3. The laser parameters, such as power, frequency, and scanning speed, can be flexibly adjusted through programming to adapt to paint film thicknesses of different specifications.
  4. Due to the concentrated laser energy and short action time, the thermally affected area on the substrate of the flat wire motor is minimal, effectively ensuring that the material properties remain unaffected.
  5. Laser Varnish Stripping Machine can be integrated with automated production lines to achieve unattended continuous operation, reducing labor costs and improving the stability and reliability of production.



5. Production Line Profile:

The Champyound motor stator line is widely used for the production of many types of motor stators and consists of several machines such as wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine in the stator line is independent and can also be connected to a conveyor belt.



6. OEM/ODM Profile:

Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.



7. R&D Profile:

Champyound offers a wide range of technical consultancy and turnkey project services for the manufacture of flat wire motors. We pride ourselves on our excellent service, professional team and reliable quality. Our services range from motor costing, manufacturing technology and staff training to complete turnkey projects.



8. About Champyound:

Located in Suzhou, a vibrant industrial and commercial center in the Yangtze River Delta, Champyound specializes in the R&D, manufacturing and sales of flat wire motor machines. Our machines manufactured in Suzhou are mainly designed for the production of flat wire motors, which are widely used in applications such as home appliance motors, industrial motors, compressor motors, AC motors, servo motors and generators, etc.
