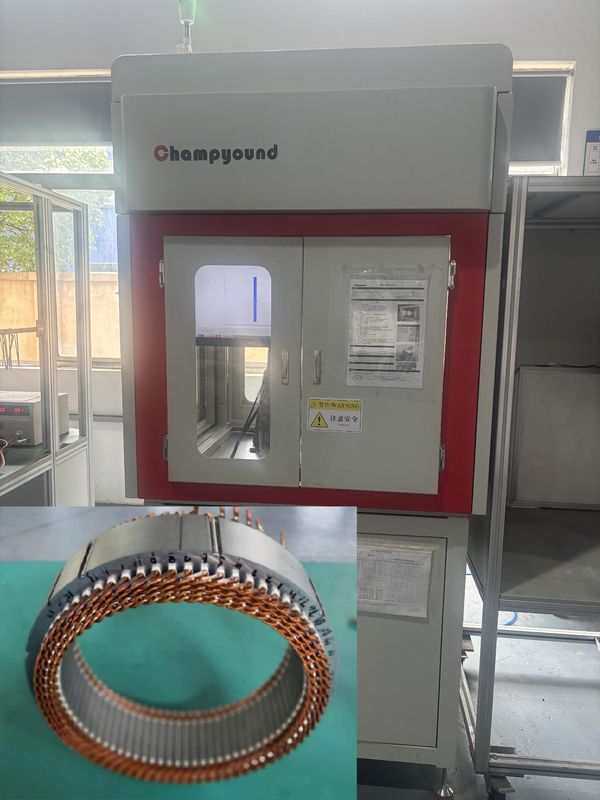

Silicon Steel Pancake Stator OD270mm 10-Layer Winding, for Robotics & Direct-Drive Systems
1. Descriptions:
This pancake-style hairpin stator combines a 270mm outer diameter, 10-layer flat wire winding, and an ultra-slim 46mm stack height, ideal for ultra-compact, high-torque-density PMSM applications such as in-wheel motors and robotic joint actuators. Manufactured under ISO9001:2015 and IATF16949:2016 certified processes, available for OEM/ODM, sample development, and small-batch production.
2. Specifications:
| Name |
Hairpin Stator Sample |
| Stator OD |
270mm |
| Hairpin Layers |
10 |
| Stack Length |
46mm |
3. Advantages:
- Ultra-slim stack enables maximum space savings in tight installations
- High layer density maintains strong torque despite reduced height
- ISO9001:2015 & IATF16949:2016 certified manufacturing
- Flexible OEM/ODM & small-batch supply
4. OEM/ODM Profile:
Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.
5. R＆D Profile:
Champyound offers a wide range of technical consultancy and turnkey project services for the manufacture of flat wire motors. We pride ourselves on our excellent service, professional team and reliable quality. Our services range from motor costing, manufacturing technology and staff training to complete turnkey projects.
