Stator Coating Testing Machine
>
50Hz 60Hz Electric Motor Winding Tester Equipment 100v-5000V

50Hz 60Hz Electric Motor Winding Tester Equipment 100v-5000V

Product Details:
Place of Origin: China
Brand Name: Champypund
Certification: ISO9001:2015
Detail Information
Place of Origin:
China
Brand Name:
Champypund
Certification:
ISO9001:2015
Name:
Comprehensive Motor Electrical Performance Tester
Operation Mode:
Automation
Control System:
PLC Program
Output Frequency:
50Hz/60Hz
Waveform Acquisition:
5kHz~100MHz
Test Range:
100~5000V
Application:
Motor Stator Test
Customization:
Allowed
Warranty:
12 Months
Highlight:

High Light

Highlight:

50Hz electric motor winding tester

,

100v electric motor winding tester

,

5000V motor winding testing equipment

Trading Information
Minimum Order Quantity:
1 SET
Price:
NEGOTIABLE
Packaging Details:
PLYWOOD CASE WITH PLASTIC BAG OR OTHER PACKAGES SUITABLE FOR SEA TRANSPORT
Delivery Time:
4-6 WEEKS
Payment Terms:
L/C, T/T
Supply Ability:
1 SET PER 4-6 WEEKS
Product Description

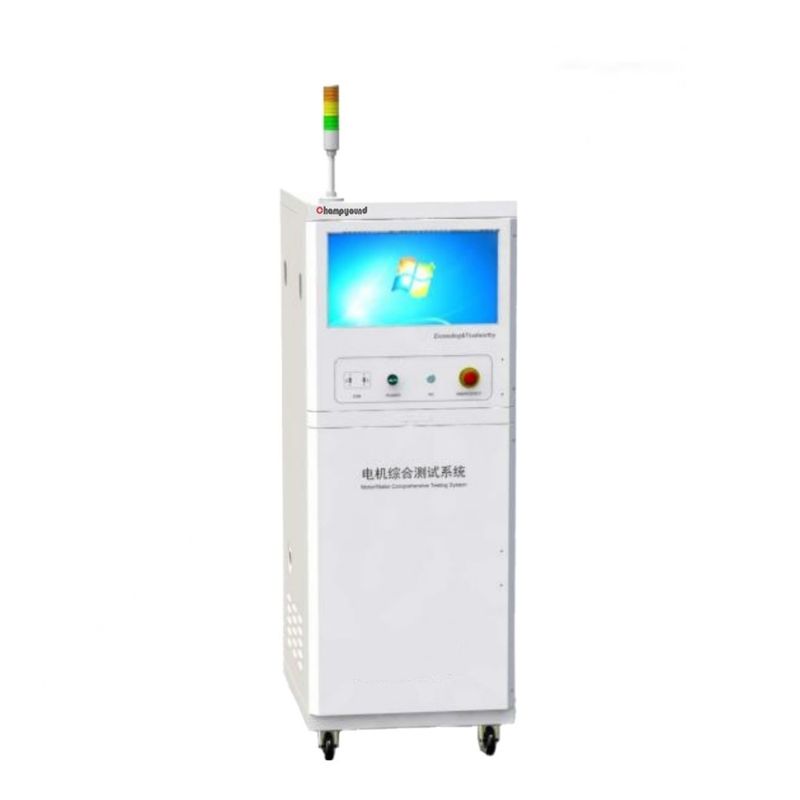

Comprehensive Electric Motor Efficiency and Electrical Performance Tester



1. Descriptions:



  1. Test standards for various stator models can be stored, edited, and retrieved.
  2. All test items can be conducted simultaneously in a single testing cycle.
  3. Limit values for each test item can be predefined, triggering an automatic audiovisual alarm for data exceeding these limits.
  4. Test data will be displayed on-screen in real-time.
  5. All test data is automatically recorded and saved.



2. Specifications:



Test Type Output Voltage Range Test Frequency Insulation Resistance Range Remarks
AC Withstand 300 ~ 5000 V AC N/A N/A Step: 1V
Insulation Test N/ N/A (100 ~ 1000) V DC Resolution: 5V
Resistance Test N/A N/A (1~999) MΩ No Temp. Comp.
Inter-turn Test 500 ~ 5000 V 5 kHz ~ 100 MHz N/A Wavefront Time ≤0.5µs

Inductance Test

0.1 µH — 9999 H 100 Hz, 120 Hz, 1 kHz N/A

Display Range 0.0%~99.99%



3. Advantages:



  1. Enables the storage, editing, and recall of test standards tailored to different stator models

  2. Equipped with an 8-channel configuration in a single station for simultaneous testing of two thermistor sets.

  3. Automates DC resistance measurement, removing the need for prior knowledge of stator winding counts or resistance ranges.

  4. Delivers AC high voltage for testing in enclosure, wire, and phase-to-phase modes.

  5. Features high-speed turn-to-turn voltage testing capabilities with adjustable shock modes and repetitive shock programming.
